KAKUTA Toggle clamp

Accessory

Swivel head bolt M12X154

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Swivel head bolt M12X154
Weight	190g
Holding Capacity
Material	Steel
Mounting Method	-
Surface finish	Trivalent Chromate

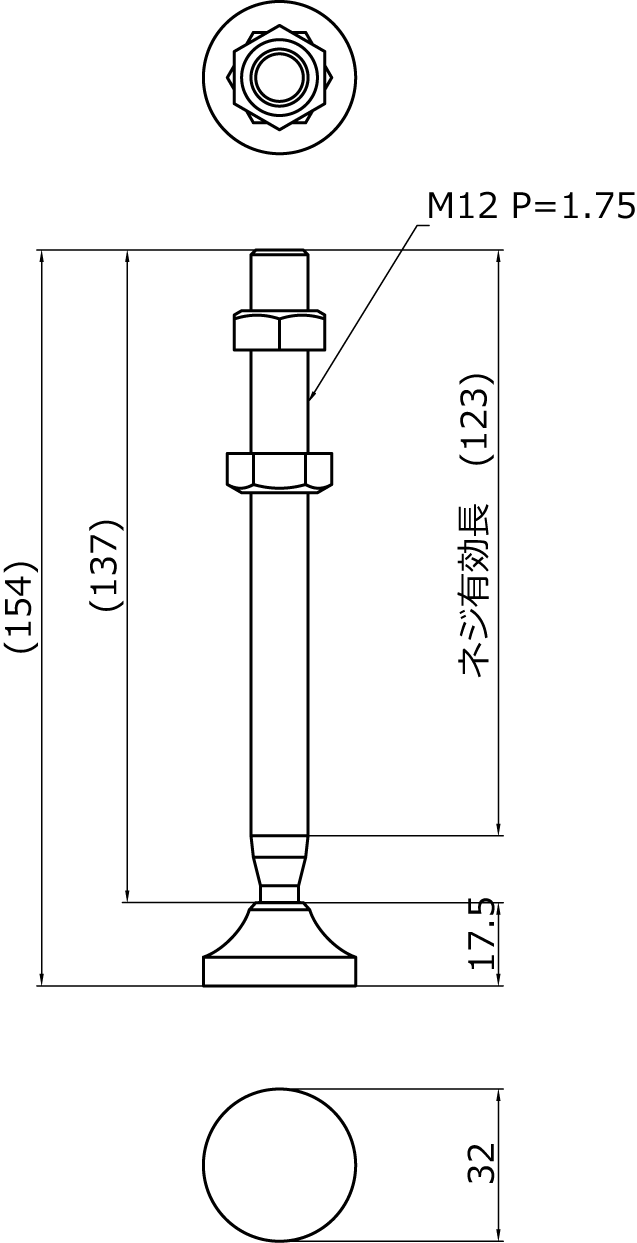

Nominal diameter:M12 Length:154mm Underhead length:137mm Thread length:123mm Swivel head height:17.5mm Swivel head diameter:32mm Material:Steel
