KAKUTA Toggle clamp

Accessory

Swivel head bolt M6X93

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Swivel head bolt M6X93
Weight	36g
Holding Capacity
Material	Steel
Mounting Method	-
Surface finish	Trivalent Chromate

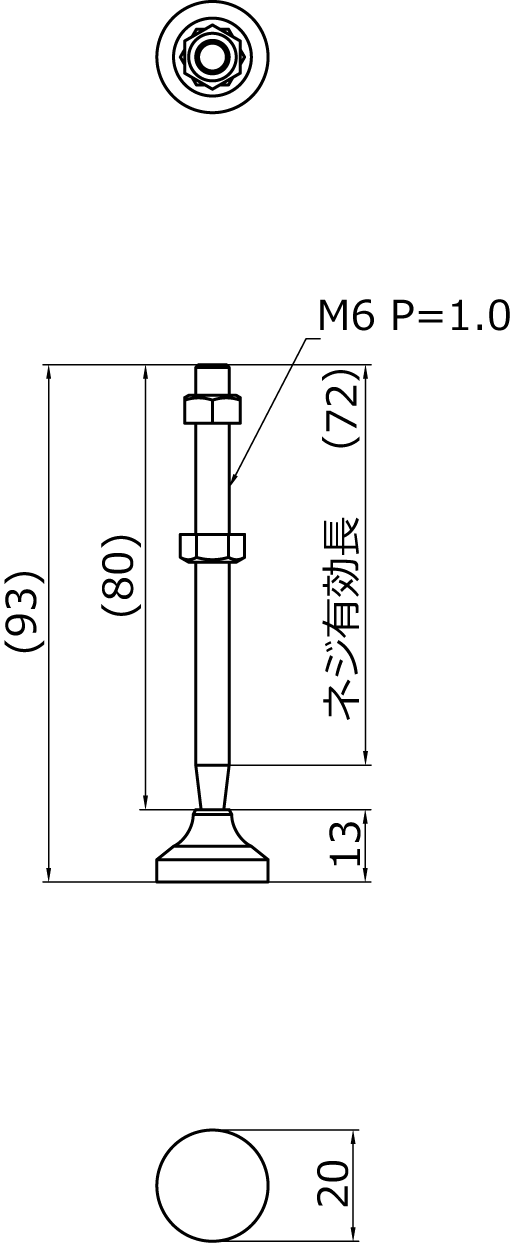

Nominal diameter:M6
Length:93mm
Underhead length:80mm
Thread length:72mm
Swivel head height:13mm
Swivel head diameter:20mm
Material:Steel
