KAKUTA Toggle clamp

Air Clamp

•

  No.AC250 (Air Clamp (Hold down clamp))

  Weight	600g
  Holding Capacity	0.4kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC650S (Air Clamp (Hold down clamp))

  Weight	2,000g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC451S (Air Clamp (Hold down clamp))

  Weight	1,300g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC450S (Air Clamp (Hold down clamp))

  Weight	800g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.55S (Air Clamp (Straight Line))

  Weight	1,500g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.56S (Air Clamp (Hold down clamp))

  Weight	1,300g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.100S (Air Clamp (Hold down clamp))

  Weight	1,920g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.101S (Air Clamp (Hold down clamp))

  Weight	4,200g
  Holding Capacity	1.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.501 (Air Clamp (Hold down clamp))

  Weight	5.600g
  Holding Capacity	1.9kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.102S (Air Clamp (Hold down clamp))

  Weight	2,000g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.105S (Air Clamp (Straight Line))

  Weight	1,380g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.200S (Air Clamp (Hold down clamp))

  Weight	2,260g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.201S (Air Clamp (Hold down clamp))

  Weight	2,300g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.500S (Air Clamp (Hold down clamp))

  Weight	4,600g
  Holding Capacity	3.8kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.501S (Air Clamp (Hold down clamp))

  Weight	5,600g
  Holding Capacity	1.9kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC450 (Air Clamp (Hold down clamp))

  Weight	800g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC451 (Air Clamp (Hold down clamp))

  Weight	1,300g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.AC650 (Air Clamp (Hold down clamp))

  Weight	2,000ｇ
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

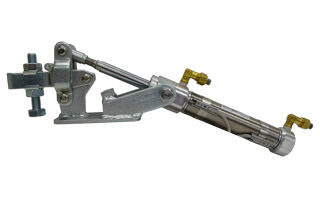

  No.56 (Air Clamp (Hold down clamp))

  Weight	1,300g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.100 (Air Clamp (Hold down clamp))

  Weight	1,920g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.101 (Air Clamp (Hold down clamp))

  Weight	4,200g
  Holding Capacity	1.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.102 (Air Clamp (Hold down clamp))

  Weight	2,000g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

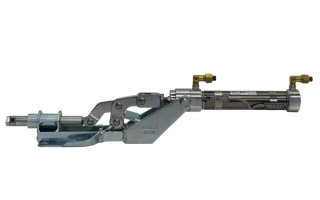

  No.105 (Air Clamp (Straight Line))

  Weight	1,380g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.106 (Air Clamp (Straight Line))

  Weight	3,600g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

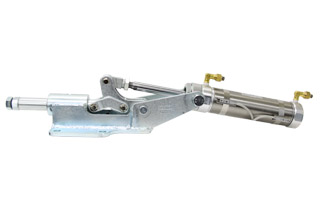

  No.106S (Air Clamp (Straight Line))

  Weight	3,600g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.200 (Air Clamp (Hold down clamp))

  Weight	2,260g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.201 (Air Clamp (Hold down clamp))

  Weight	2,300g
  Holding Capacity	1.0kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.500 (Air Clamp (Hold down clamp))

  Weight	4,600g
  Holding Capacity	1.9kN(0.5Mpa時)

  DXF(2D) IGES STEP
•

  No.55 (Air Clamp (Straight Line))

  Weight	1,500g
  Holding Capacity	0.7kN(0.5Mpa時)

  DXF(2D) IGES STEP
