KAKUTA Toggle clamp

Wide Direct Copy

• No.02S-2S (Straight Line)

  Weight	360g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.51BXS-2S (Straight Line)

  Weight	450g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

  No.51BS-2S (Straight Line)

  Weight	480g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

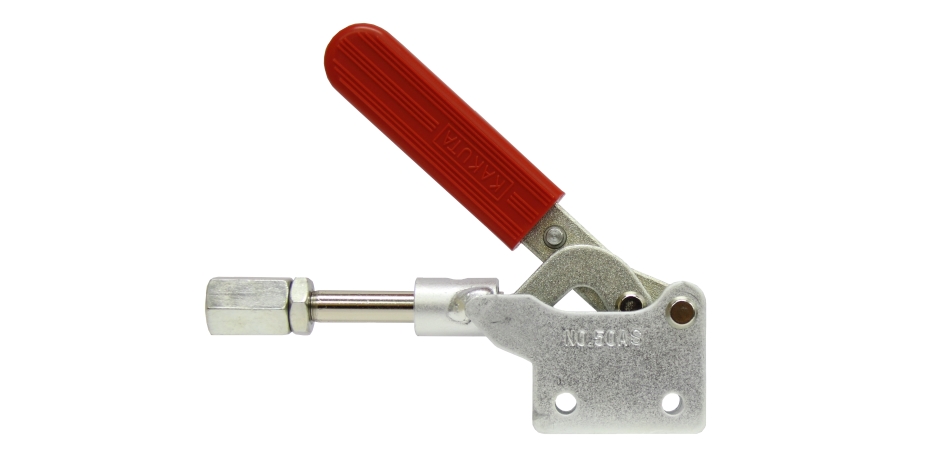

  No.50AS-2S (Straight Line)

  Weight	355g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.50A-2S (Straight Line)

  Weight	360g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

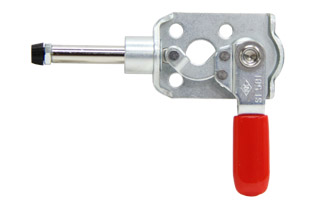

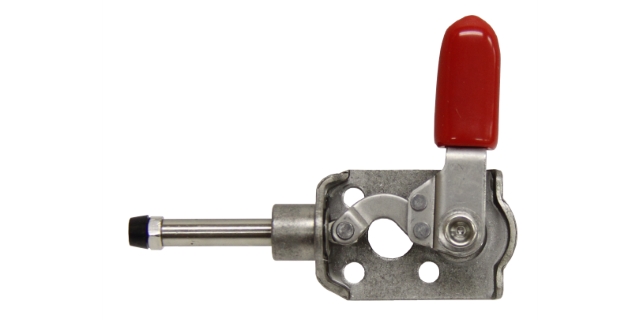

  No.SL50R-2S (Straight Line)

  Weight	60g
  Holding Capacity	0.5kN(50kgf)　（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
•

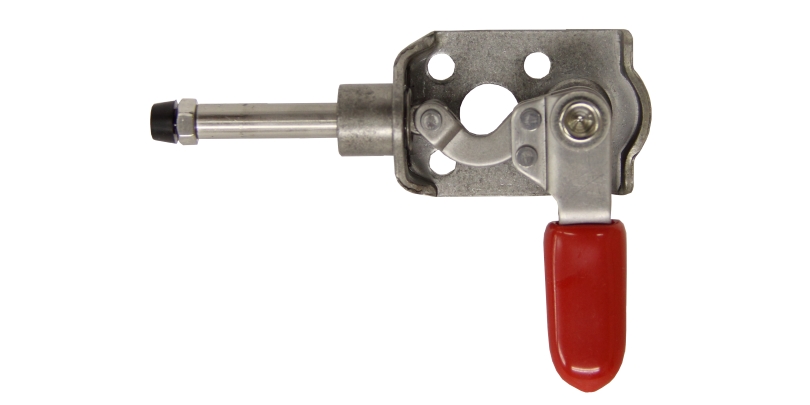

  No.SL50L-2S (Straight Line)

  Weight	60ｇ
  Holding Capacity	0.5kN(50kgf)　（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
•

  No.06-2S (Straight Line)

  Weight	70g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) STEP DXF(2D)
•

  No.50BS (Straight Line)

  Weight	930g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.50AS (Straight Line)

  Weight	355g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.02-2S (Straight Line)

  Weight	370g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.02S (Straight Line)

  Weight	360g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

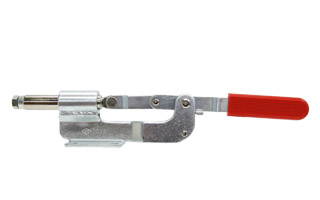

  No.X6 (Straight Line)

  Weight	630g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.80 (Straight Line)

  Weight	1.000ｇ
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

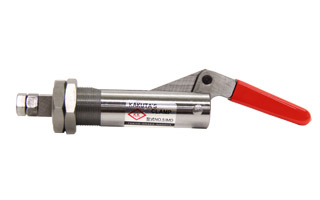

  No.51MD (Straight Line)

  Weight	1280g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.51MB (Straight Line)

  Weight	1660g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.SL50R (Straight Line)

  Weight	60g
  Holding Capacity	0.5kN(50kgf)　（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
•

  No.SL50L (Straight Line)

  Weight	60ｇ
  Holding Capacity	0.5kN(50kgf)　（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
•

  No.SL350 (Straight Line)

  Weight	890g
  Holding Capacity	10.0kN(1,000kgf)

  DXF(2D) IGES STEP
•

  No.SL300 (Straight Line)

  Weight	1,420g
  Holding Capacity	6.8kN(680kgf)

  DXF(2D) IGES STEP
•

  No.SL200 (Straight Line)

  Weight	560g
  Holding Capacity	3.8kN(380kgf)

  DXF(2D) IGES STEP
•

  No.SL100 (Straight Line)

  Weight	390g
  Holding Capacity	2.2kN(220kgf)

  DXF(2D) IGES STEP
•

  No.FM250 (Straight Line)

  Weight	780g
  Holding Capacity	3.2kN(320kgf)

  DXF(2D) IGES STEP
•

  No.FM150-2S (Straight Line)

  Weight	260g
  Holding Capacity	1.5kN(150kgf)

  DXF(2D) IGES STEP
•

  No.FM150 (Straight Line)

  Weight	260g
  Holding Capacity	1.5kN(150kgf)

  DXF(2D) IGES STEP
•

  No.FM50-2S (Straight Line)

  Weight	110g
  Holding Capacity	0.9kN(90kgf)

  DXF(2D) IGES STEP
•

  No.FM50 (Straight Line)

  Weight	110g
  Holding Capacity	0.9kN(90kgf)

  DXF(2D) IGES STEP
•

  No.51C (Straight Line)

  Weight	4,060g
  Holding Capacity	16.0kN(1600kgf)

  DXF(2D) IGES STEP
•

  No.51BXS (Straight Line)

  Weight	450g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

  No.51BSM (Straight Line)

  Weight	1,170g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.51BSS (Straight Line)

  Weight	450g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

  No.51BL (Straight Line)

  Weight	2,130g
  Holding Capacity	5.0kN(500kgf)

  DXF(2D) IGES STEP
•

  No.51BM (Straight Line)

  Weight	1,170g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.51BS (Straight Line)

  Weight	480g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

  No.51 (Straight Line)

  Weight	500g
  Holding Capacity	2.2kN(220kgf)

  DXF(2D) IGES STEP
•

  No.50B (Straight Line)

  Weight	910g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) IGES STEP
•

  No.50A (Straight Line)

  Weight	360g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.07 (Straight Line)

  Weight	100g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) IGES STEP
•

  No.06 (Straight Line)

  Weight	70g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) IGES STEP
•

  No.02BU (Straight Line)

  Weight	370g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

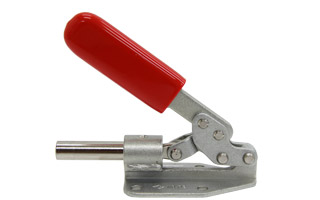

  No.02 (Straight Line)

  Weight	370g
  Holding Capacity	2.0kN(200kgf)

  DXF(2D) IGES STEP
•

  No.SL10 (Straight Line)

  Weight	40g
  Holding Capacity	0.45kN(45kg)　（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
•

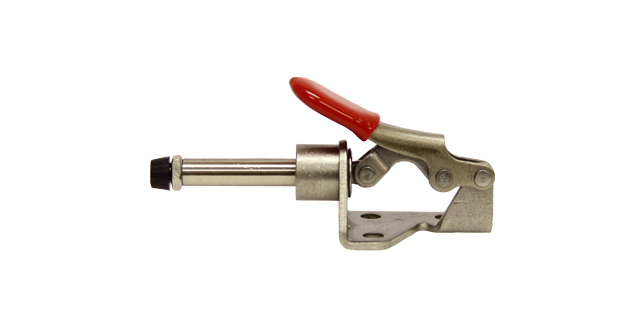

  No.SL10-2S (Straight Line)

  Weight	40g
  Holding Capacity	0.45kN(45kgf)　（（Maximum Value when using Hexhead Bolts.）

  DXF(2D) IGES STEP
