KAKUTA Toggle clamp

Dual Clamp

•

  No.51BSS-2S (Straight Line)

  Weight	450g
  Holding Capacity	1.6kN(160kgf)

  DXF(2D) IGES STEP
•

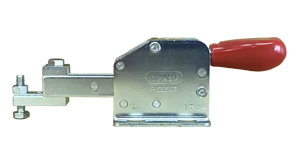

  DualClamp PUD-25ST（Hold Down ）

  Weight	450g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) IGES STEP
•

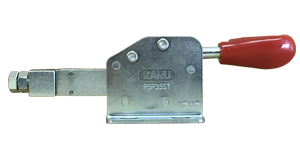

  DualClamp PSP-33ST（Straight Line）

  Weight	497g
  Holding Capacity	2.5kN(250kgf)

  DXF(2D) IGES STEP
•

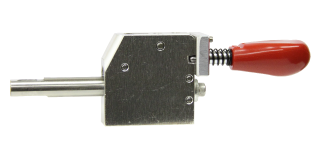

  DualClamp SUD-34ST-L （Hold Down w/Lock） ＜Built-to-order＞

  Weight	320g
  Holding Capacity	0.3kN(30kgf)

  DXF(2D) STEP IGES
•

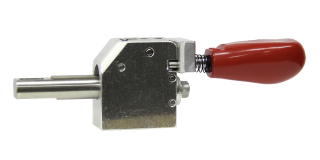

  DualClamp SUD-20ST-L （Hold Down w/Lock） ＜Built-to-order＞

  Weight	190g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) STEP IGES
•

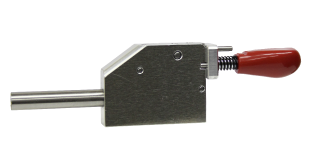

  DualClamp YSP-50ST-L （Straight Line w/Lock） ＜Built-to-order＞

  Weight	435g
  Holding Capacity	3.0kN(300Kgf)

  DXF(2D) STEP IGES
•

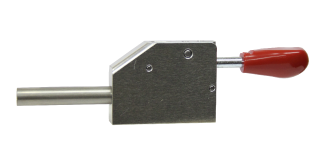

  DualClamp YSP-50ST （Straight Line） ＜Built-to-order＞

  Weight	416g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) STEP IGES
•

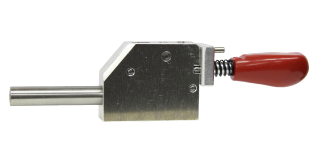

  DualClamp YSP-40ST-L （Straight Line w/Lock） ＜Built-to-order＞

  Weight	315g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) STEP IGES
•

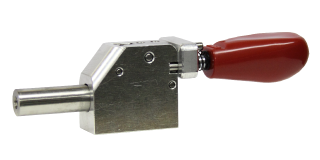

  DualClamp YSP-22ST-L （Straight Line w/Lock） ＜Built-to-order＞

  Weight	178 g
  Holding Capacity	2.5kN(250kgf)

  DXF(2D) IGES STEP
•

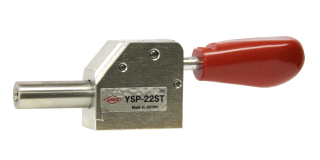

  Dual clamp YSP-22ST（Straight Line）

  Weight	166g
  Holding Capacity	2.5kN(250kgf)

  DXF(2D) STEP IGES
•

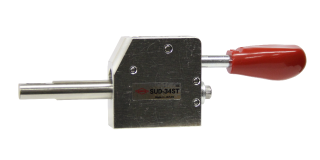

  DualClamp SUD-34ST（Hold Down ）

  Weight	300g
  Holding Capacity	0.3kN(30kgf)

  DXF(2D) STEP IGES
•

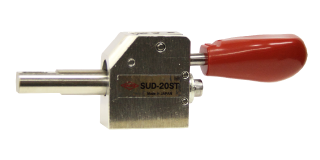

  DualClamp SUD-20ST（Hold Down ）

  Weight	177g
  Holding Capacity	0.5kN(50kgf)

  DXF(2D) STEP IGES
•

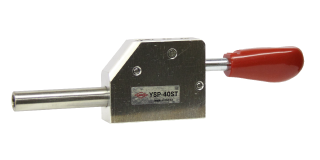

  DualClamp YSP-40ST（Straight Line）

  Weight	298g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) STEP IGES
•

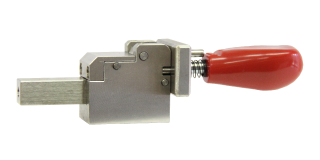

  DualClamp KCP-22ST（Straight Line w/Lock)

  Weight	348g
  Holding Capacity	2.5kN(250kgf)

  DXF(2D) STEP IGES
•

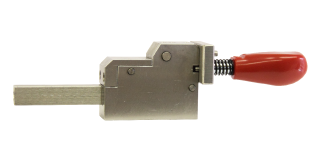

  DualClamp KCP-40ST（Straight Line w/Lock)

  Weight	588g
  Holding Capacity	3.0kN(300kgf)

  DXF(2D) STEP IGES
