トグルクランプについて 1<種類:手動タイプ>
■トグルクランプとは
手で扱える程度の小さな力をテコの原理とトグル機構で増幅して、数十kgf~数百kgfの大きな力で押え・固定する工具です。
※締圧力はトグル機構の死点付近でのみ発揮されるので、ボルトで締め込む力やシリンダの力などとは異なります。
(トグル機構…作動過程で、ある死点を過ぎると反力の向きが逆になり、セルフロックする機構です。)
■トグルクランプの種類について
●下方押え型トグルクランプ
ハンドル縦型(クランプ時に操作レバーが接地面に対して垂直になるタイプ)
ハンドル横型(クランプ時に操作レバーが接地面に対して平行になるタイプ)
バリクランプ
●横押型トグルクランプ
横押型
押し引き兼用
●フック型(引っぱり型)トグルクランプ

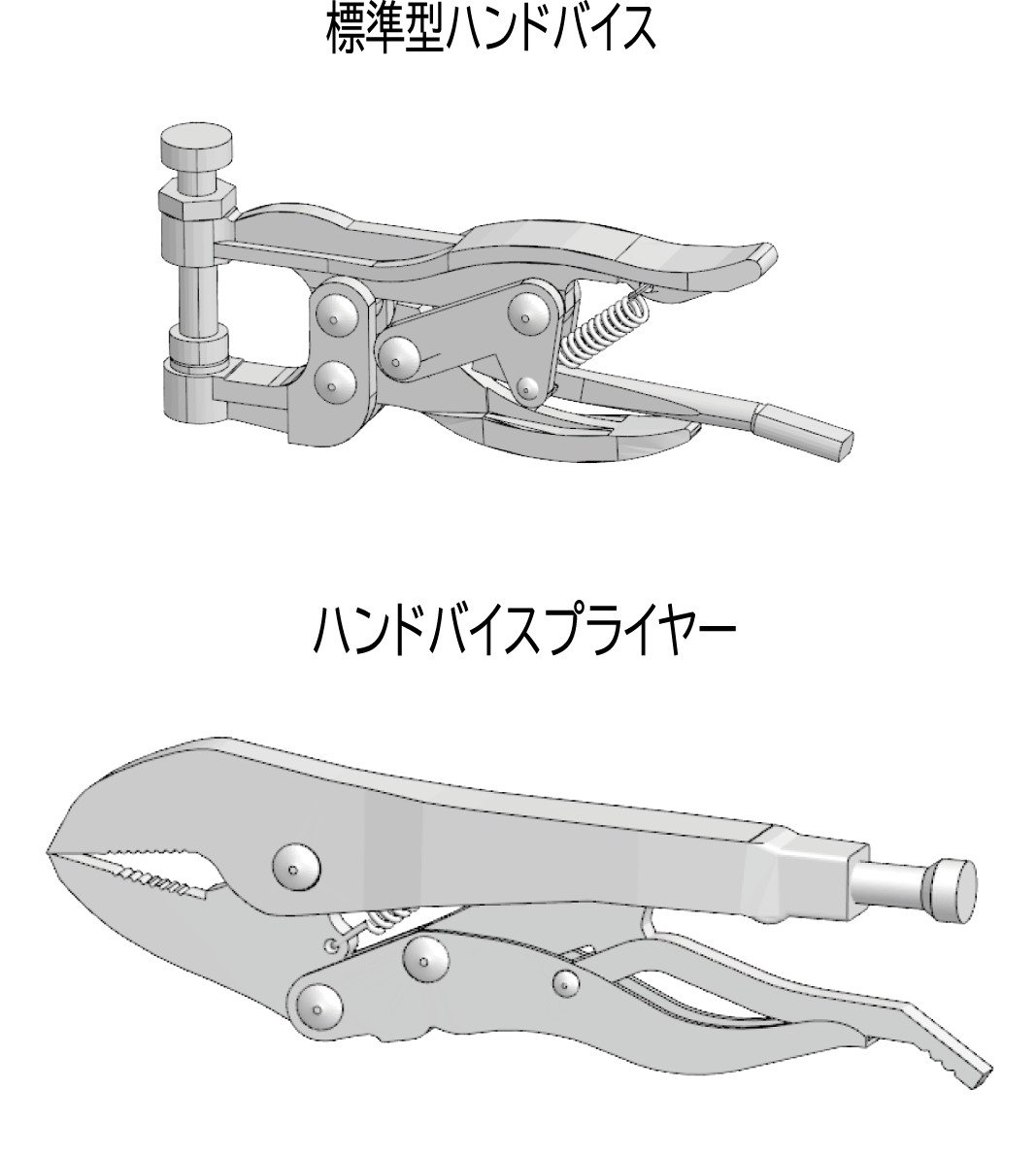

●ハンドバイスプライヤー
標準型ハンドバイス
ハンドバイスプライヤー
