KAKUTA Toggle clamp

Hand Vise Pliers

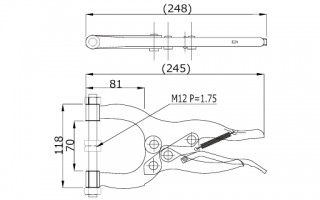

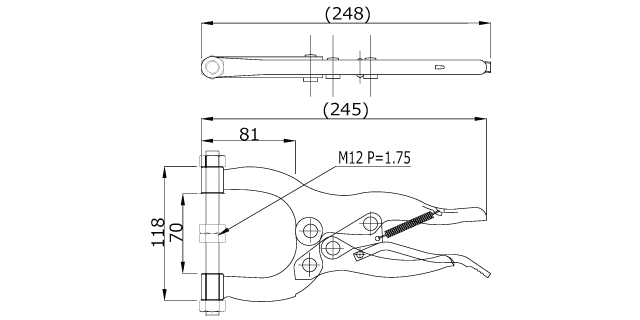

No.3B (Standard Hand Vise)

•

CAD data

DXF(2D)

Category	Hand Vice
Model Number	No.3B
Weight	840ｇ
Holding Capacity	2.6kN(260kgf)
Material	Steel（SPCC）
Mounting Method	-
Surface finish	Trivalent Chromate

●Feature and Application Margin scissors 0 - 50mm Adjust margin scissors with a bolt. One-action to hold workpieaces and easy to use. For inspection, welding, assembly, machining and press fit. ●Caution The holding capacity is for reference. Do not give the shock, vibration and internal pressure which causes a failure. Caution to pinch the fingers.
