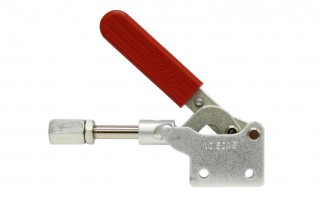

KAKUTA Toggle clamp

Straight line clamp

No.50AS (Straight Line)

•

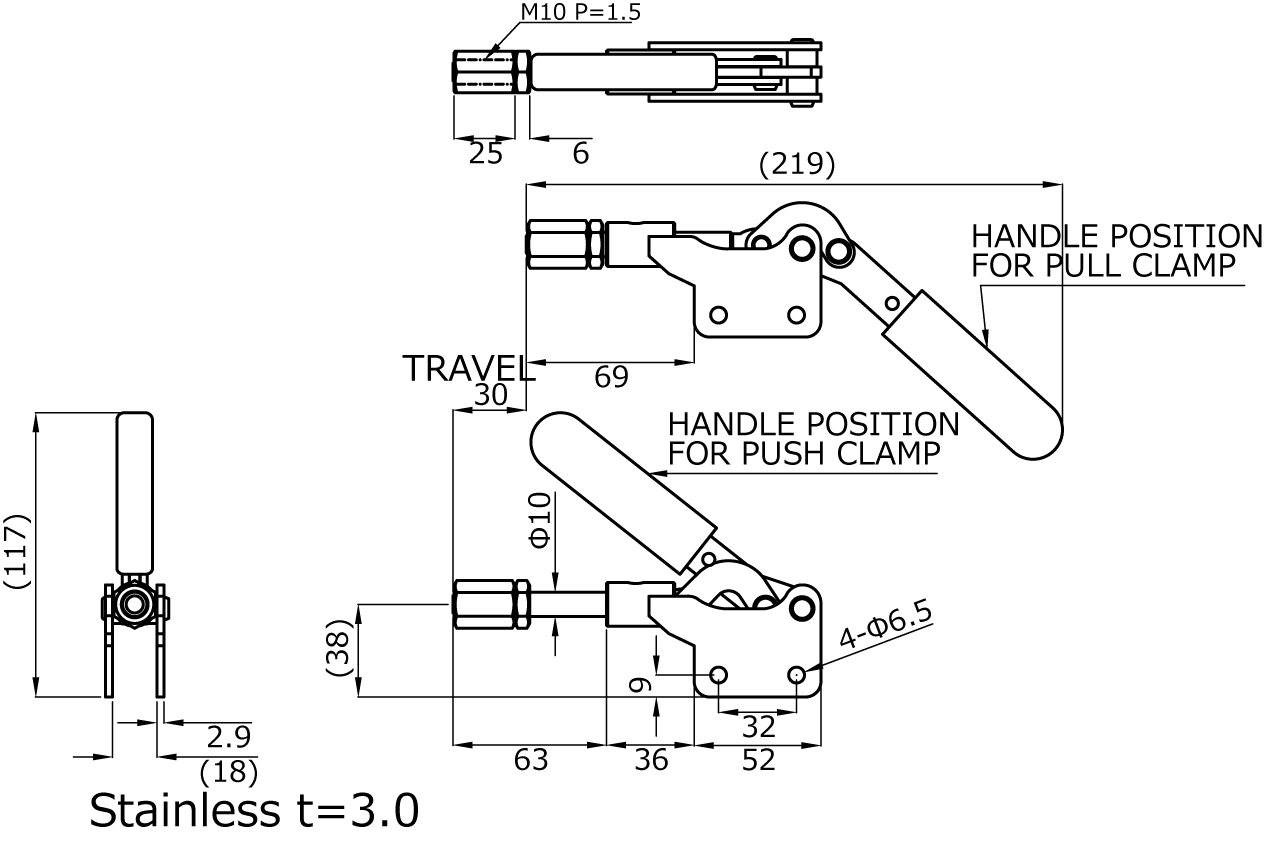

CAD data

DXF(2D) IGES STEP

Category	Straight Line
Model Number	No.50AS
Weight	355g
Holding Capacity	2.0kN(200kgf)
Material	Steel（SPCC）
Mounting Method	Straight Base
Surface finish	Nickel Plating

Stroke 30mm
●Feature
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
●Application
Optimal for repetitive work
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
