KAKUTA Toggle clamp

Accessory

Heat-resistant bellows for Air clamp

•
•

CAD data

Category	Accessory
Model Number	Heat-resistant bellows for Air clamp
Weight
Holding Capacity
Material	-
Mounting Method	-
Surface finish

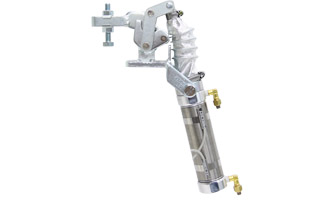

Heat-resistant bellows for Air clamp Category Accessory Product Number Heat-resistant bellows for Air clamp Heat-resistant bellows for Air clamp For protect sputter and dust at air cylinder shaft. *Protect only cylinder shaft area. *Need preventive maintenance as cleaning and lubricate even if you use the bellows. *Use in High Temperature Optimal operation tempareture range is 5 to 60 deg.C. If you will use at higher than 60deg.C, must measure a thermal insulation and shield. If do not measure, there is a possibility of melting O-ring inside of air cylinder and air leaking. We do not take a responsibility that failure due to using at low or high tempareture. *Please read before use. *We will sell the bellows only and air clamp w/bellows. *It will take time to provide air clamp w/bellows. *The bellows cannot install on straight line air clamp. *When you order, add [-JC] after air clamp model number. e.g. AC450-JC GENTEX Aluminum Cloth Enable Model: AC450, AC451, AC650, 56, 100, 101, 102, 200, 201, 500 and 501.
