KAKUTA Toggle clamp

Accessory

Swivel head bolt M10X112

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Swivel head bolt M10X112
Weight	103g
Holding Capacity
Material	Steel
Mounting Method	-
Surface finish	Trivalent Chromate

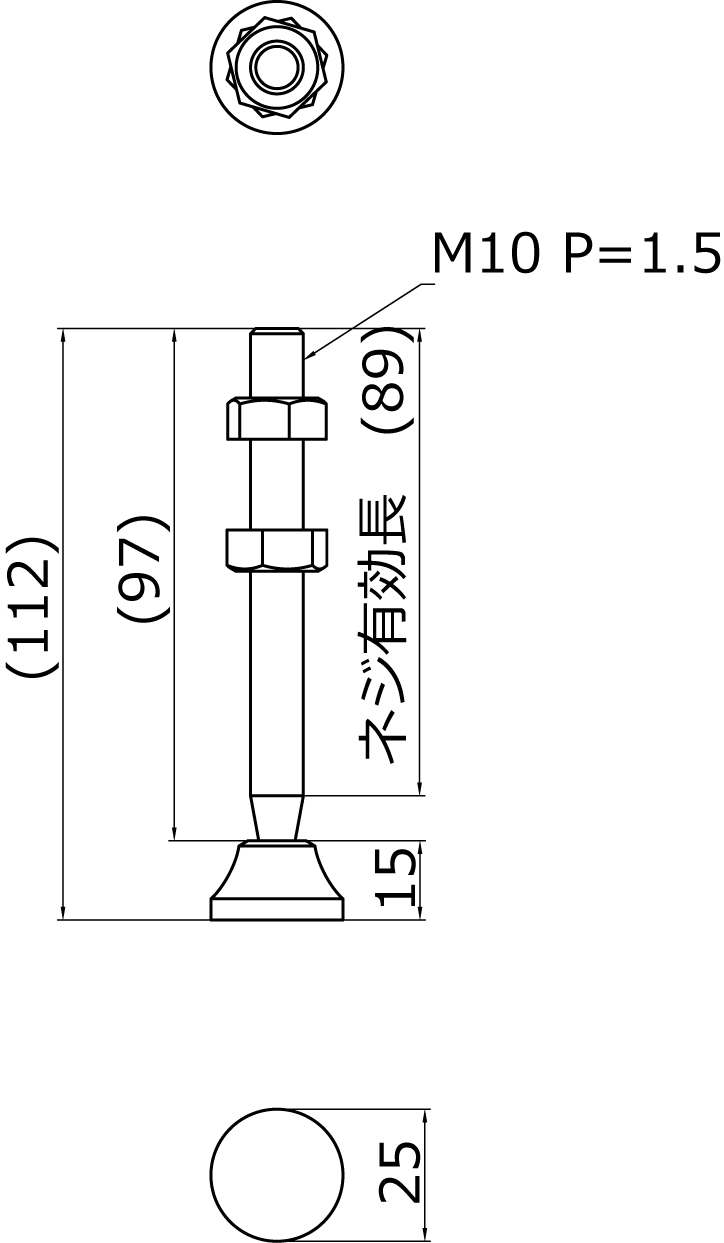

Nominal diameter:M10 Length:112mm Underhead length:97mm Thread length:89mm Swivel head height:15 Swivel head diameter:25mm Material:Steel
