KAKUTA Toggle clamp

Accessory

Swivel head bolt M8X110

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Swivel head bolt M8X110
Weight	70g
Holding Capacity
Material	Steel
Mounting Method	-
Surface finish	Trivalent Chromate

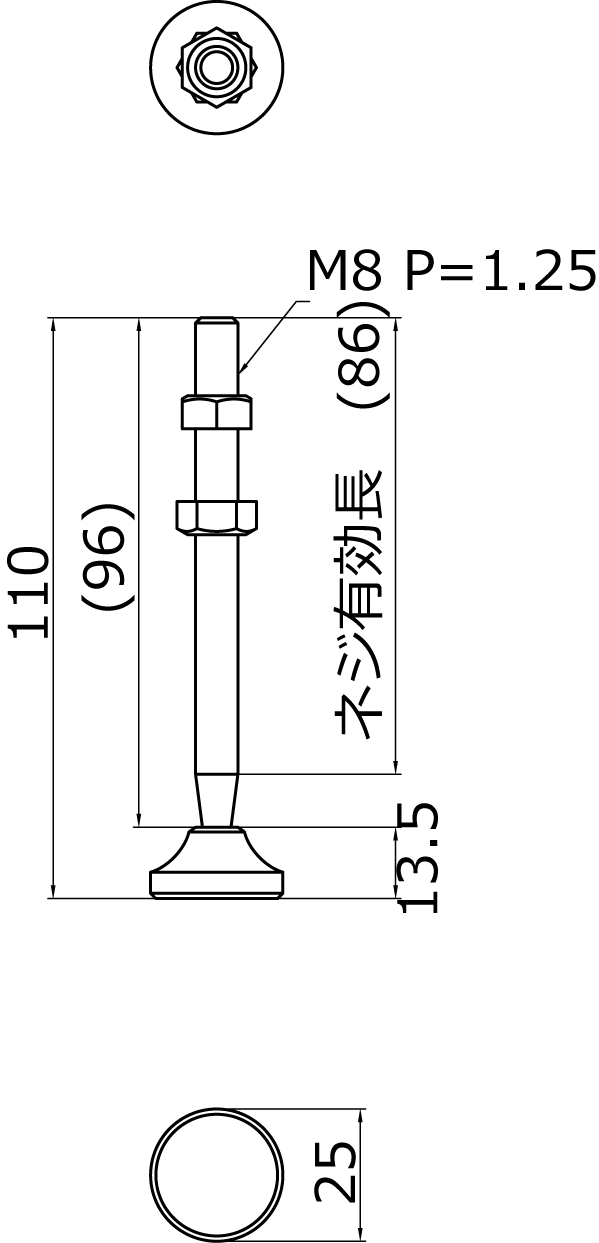

Nominal diameter:M8 Length:110mm Underhead length:96mm Thread length:86mm Swivel head height:13.5mm Swivel head diameter:25mm Material:Steel
