KAKUTA Toggle clamp

Accessory

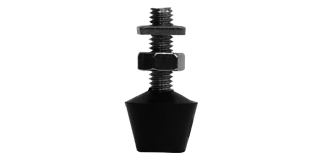

Rubber tip Stainless bolt M4X13

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Rubber tip Stainless bolt M4x13
Weight	5g
Holding Capacity
Material	-
Mounting Method	-
Surface finish	None

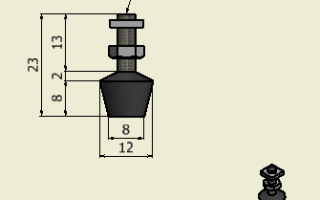

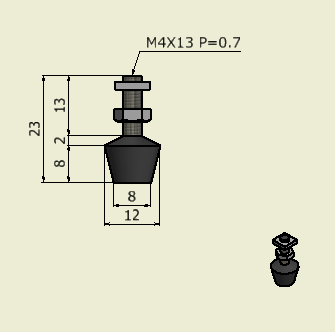

ManufactuRubber material: Nitrilering temperature: 170-180C Endurance temperature: 80C High temperature: 150-160C (Max. 30min) Nominal diameter x Underhead length M4x13 Hardness: Shore 70C Bolt Material: Stainless steel Rubber material: Nitrile
